G1-R 24V Split Parking Air Conditioner, 2600 W
$339.00

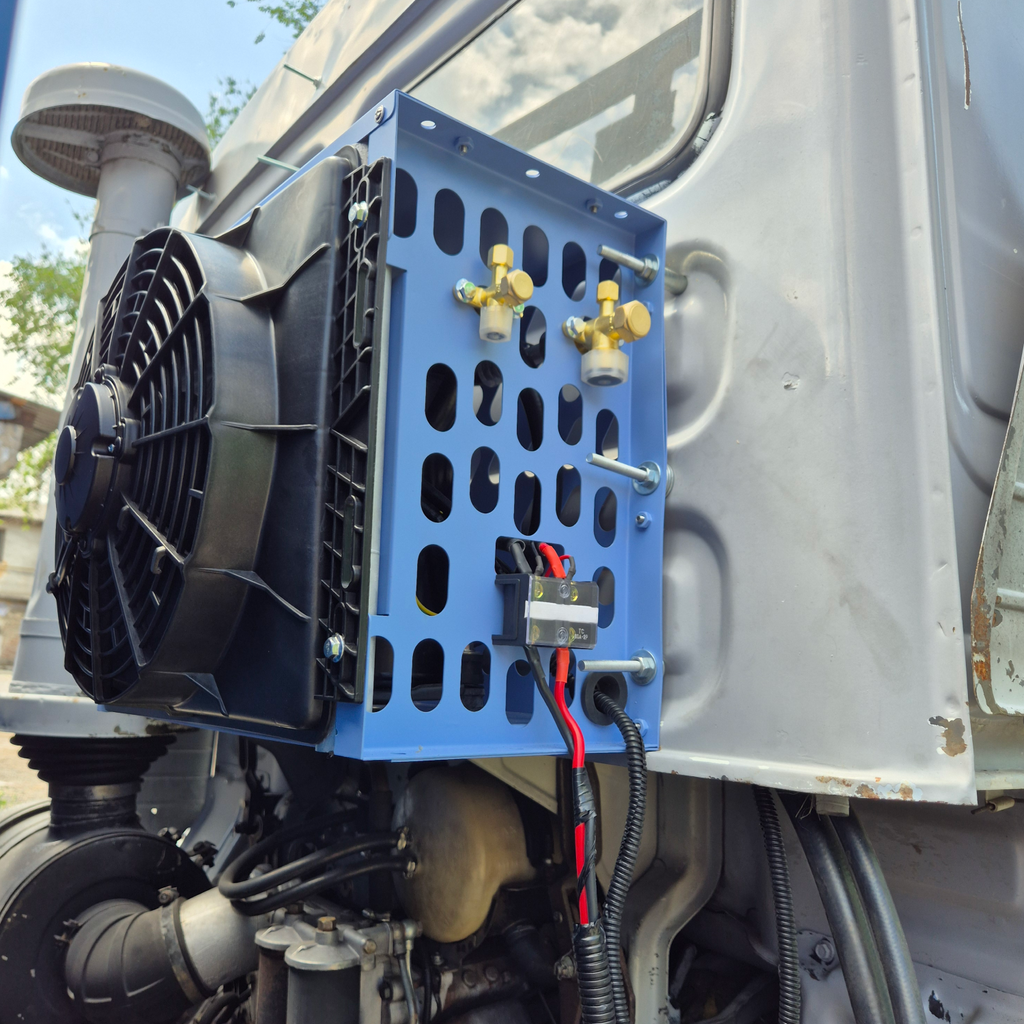

The Karlesk G1-R is a 24V split-type parking air conditioner for truck cabs, vans, tractors and construction machinery. The outdoor unit in a steel frame mounts on the back of the cab, the compact indoor unit goes inside, and the system cools from the batteries with the engine off.
Key features
- Cooling capacity 2600 W (8,870 BTU/h)
- Runs from the 24V batteries — no idling, no fuel burned
- Compact indoor unit, outdoor unit in a sturdy steel frame
- Self-diagnostics
Specifications
| Model | G1-R |
|---|---|
| Cooling capacity | 2600 W (8,870 BTU/h) |
| Voltage | 24V DC |
| Current draw | 30–45 A |
| Indoor unit airflow | up to 400 m³/h (235 CFM) |
| Outdoor unit airflow | up to 2000 m³/h (1,177 CFM) |
| Refrigerant | R134a, 550 ± 50 g; POE68 oil |
| Operating temperature | +5…+50 °C (41–122 °F) |
| Noise | < 70 dB(A) |

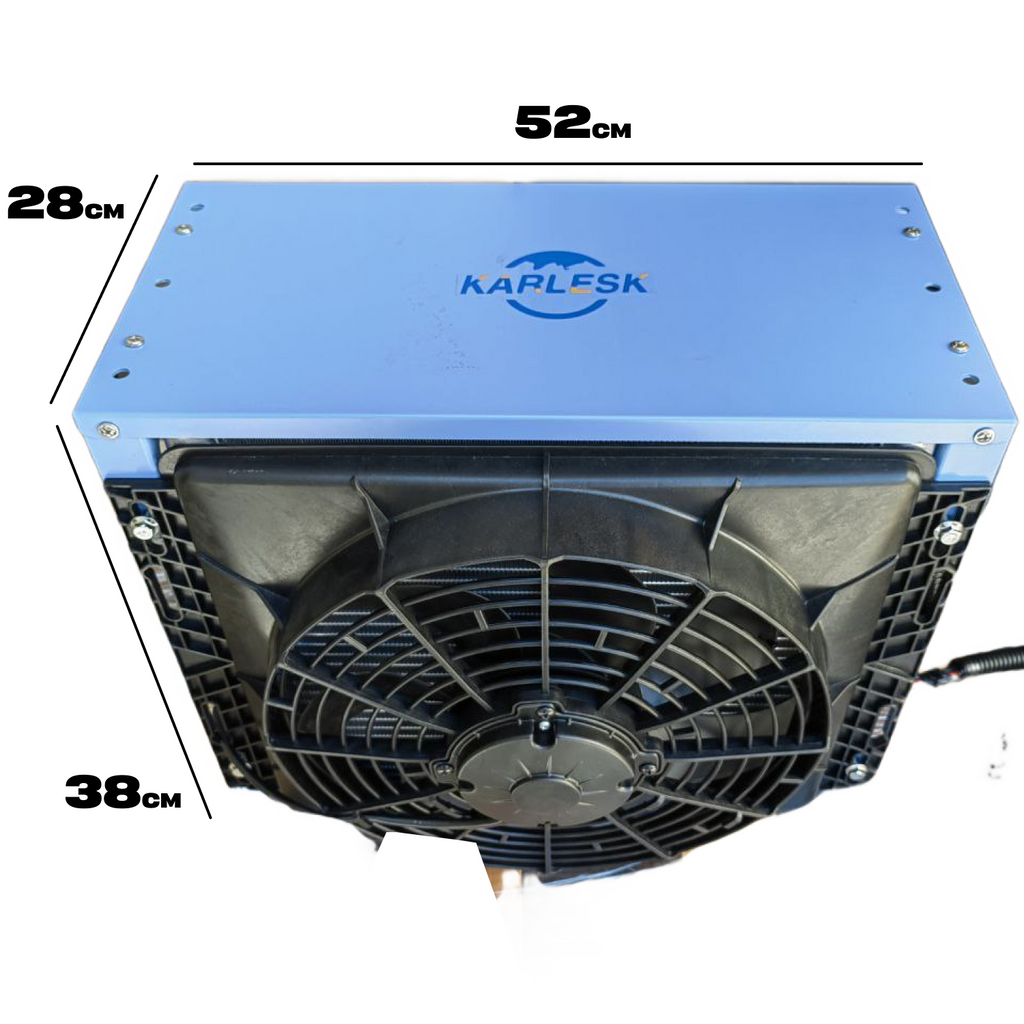

| Outdoor unit (L×W×H) | 490 × 270 × 360 mm (19.3 × 10.6 × 14.2 in) |

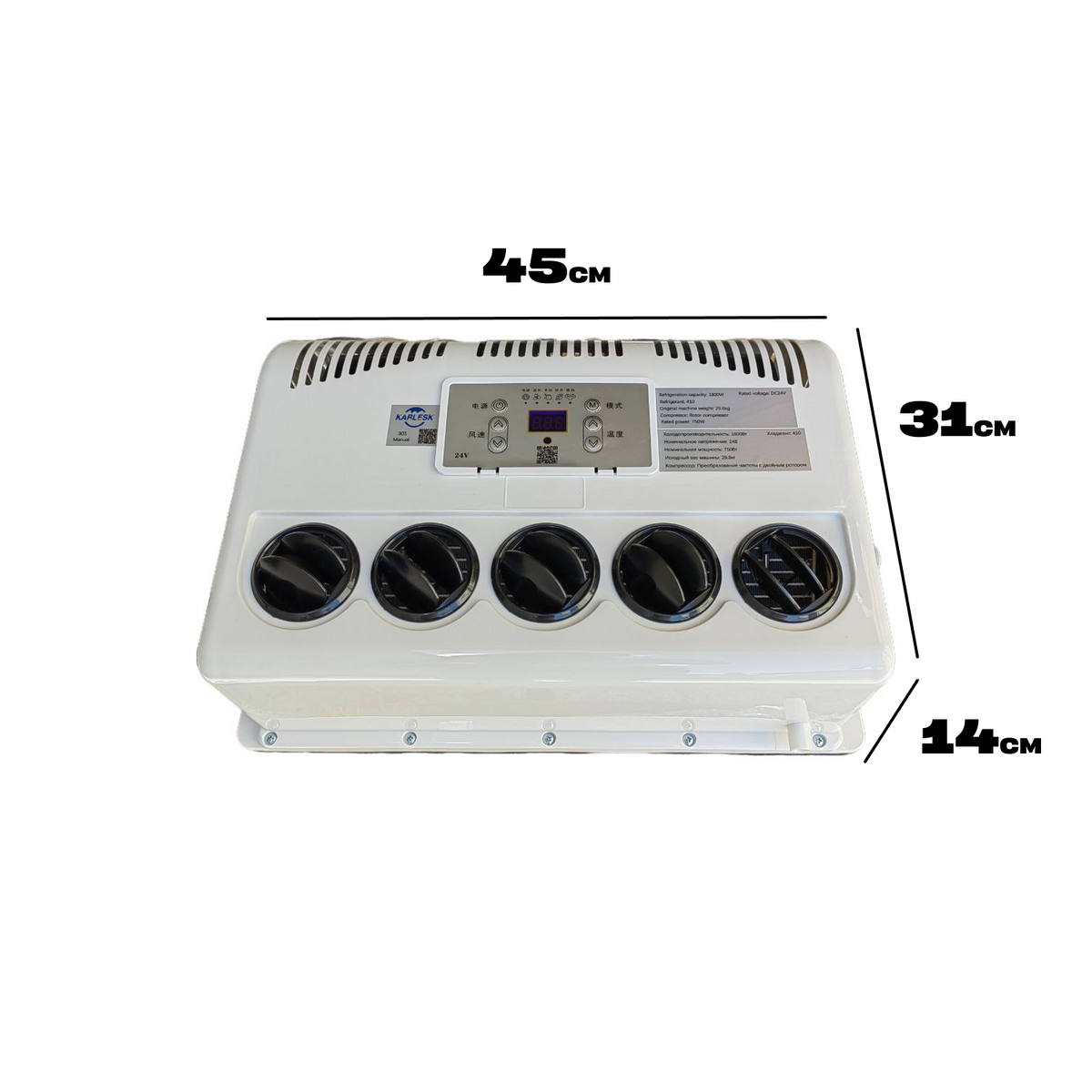

| Indoor unit (L×W×H) | 450 × 140 × 310 mm (17.7 × 5.5 × 12.2 in) |
| Cable length | 3 m (10 ft) |
| Total shipping weight | 25 kg (55 lb) |
Good to know
- Split units are shipped without refrigerant. After the lines are connected, the system must be evacuated and charged with R134a (550 ± 50 g) by an A/C technician.
- Recommended for vehicles with a healthy battery bank; for overnight cooling add an auxiliary lithium battery or run the engine periodically.
