YX1-1-S 12V Rooftop Air Conditioner for Cars and Campers, 2000 W
$353.00
Skip to product information
YX1-1-S 12V Rooftop Air Conditioner for Cars and Campers, 2000 W
$353.00

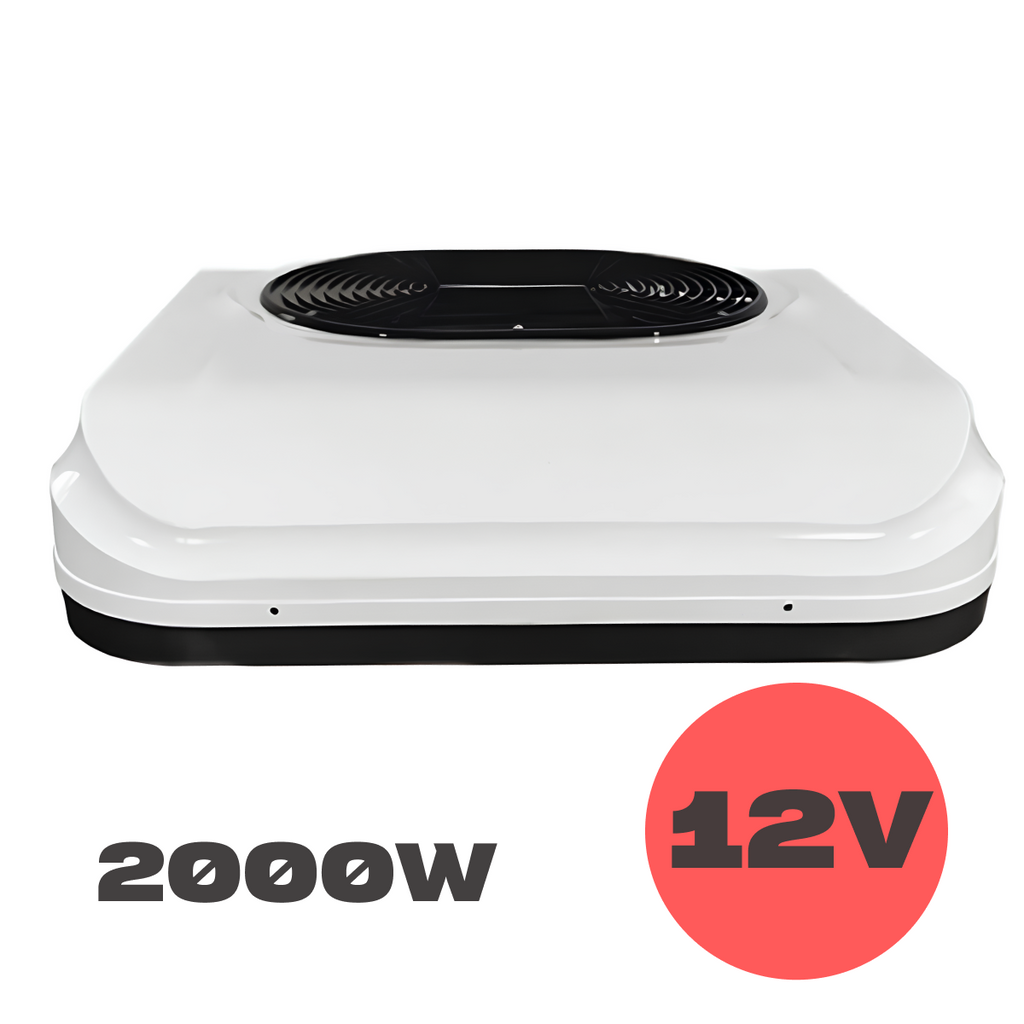

The Karlesk YX1-1-S is the most compact rooftop air conditioner in the Karlesk range: 2000 W of cooling for 12V cars, vans, campers and machinery cabs. It runs from the battery, so the cabin stays cool while parked with the engine off.
Key features
- Cooling capacity 2000 W (6,800 BTU/h)
- Compact low-profile rooftop unit
- Runs from the 12V battery; battery of 100 Ah or more recommended
- Operating range +5…+45 °C (41–113 °F)
Specifications
| Model | YX1-1-S |
|---|---|
| Cooling capacity | 2000 W (6,800 BTU/h) |
| Voltage | 12V DC |
| Current draw | 35–55 A |
| Indoor airflow | up to 400 m³/h (235 CFM) |
| Outdoor airflow | up to 2000 m³/h (1,177 CFM) |
| Refrigerant | R134a, 500 g; POE68 oil |
| Noise | < 70 dB(A) |
| Outdoor unit (L×W×H) | 670 × 670 × 160 mm (26.4 × 26.4 × 6.3 in) |
| Inner frame | 550 × 350 mm (21.7 × 13.8 in) |
| Cable length | 5 m (16 ft) |
| Shipping weight | 25 kg (55 lb) |
Good to know
- A battery of 100 Ah or more is required; for overnight cooling use a lithium house battery.
